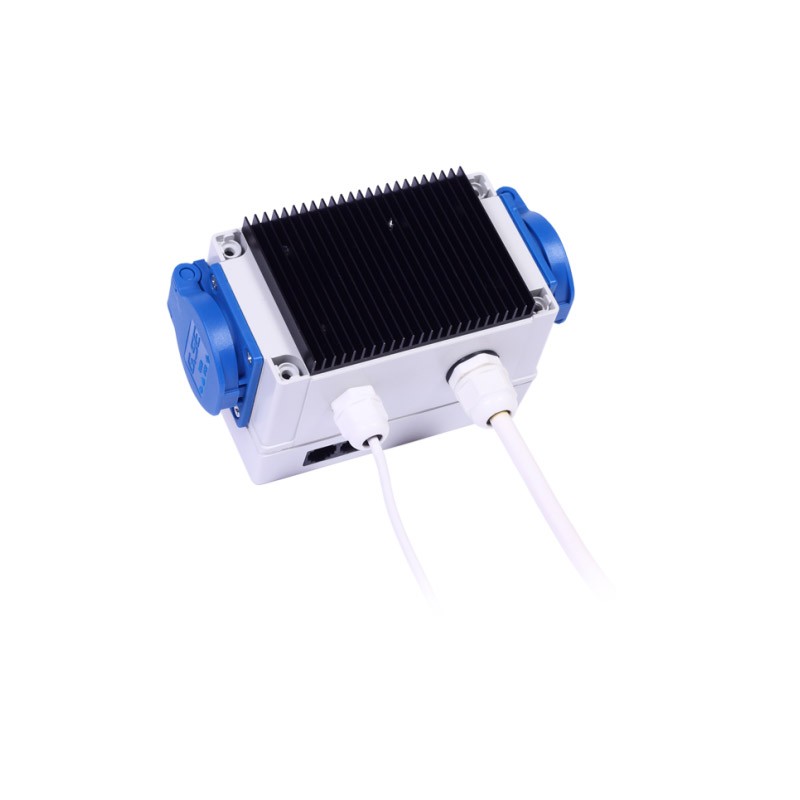

GSE Digitální regulátor AC a EC ventilátorů 2x5A

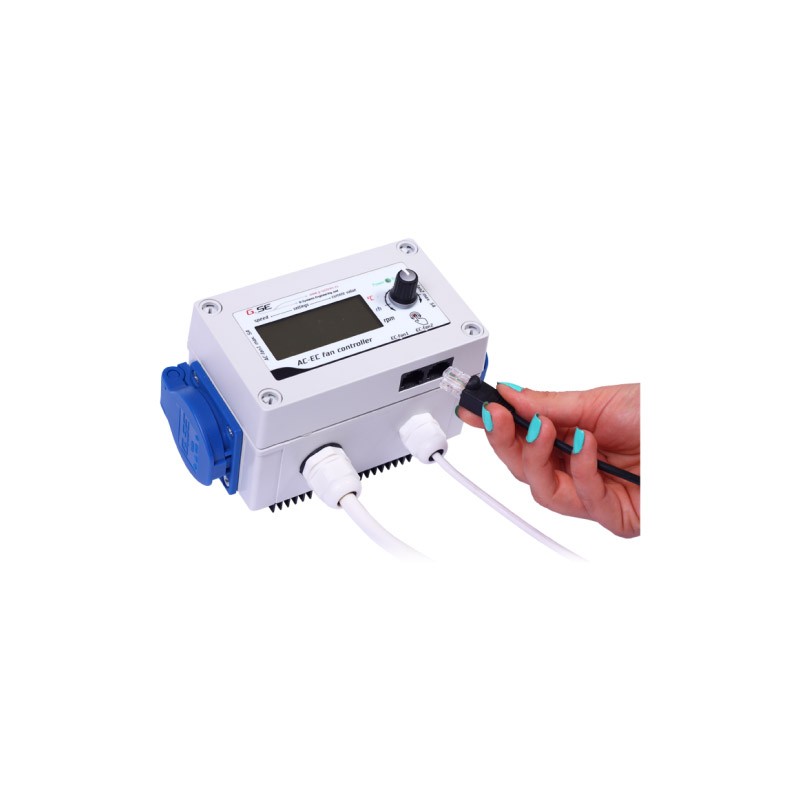

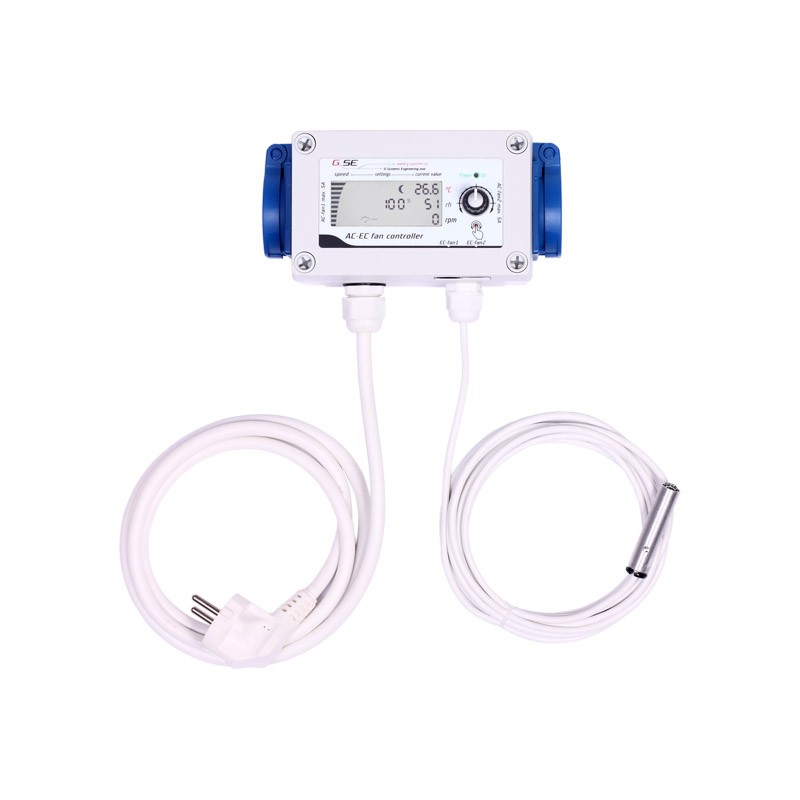

This AC-EC fan controller with LCD display, a rotary push knob allows a very fast setting of all the values and reading of all the information's given by the fan such as actual set speed, temperature, humidity day/night, negative pressure of the intake fan and RPM (rounds per minute) of the EC-exhaust fan. A built in light sensor in the probe recognise day/night modes. Two 5A/230V AC exits for intake and exhaust fan, in parallel you have 2xRJ45 connector and you can choose between 0-10V or PWM (pulse wide modulation) signal. 2 internal temperature sensors prevent from overheating on the heat sink and processor side. The AC-EC fan controller comes with power cable 1.5m, 4m sensor cable. It is ready to use. You can program 15 individual settings with rotary push button.

Features:

-Temperature day

-Temperature hysteresis day

-Humidity day

-Humidity hysteresis day

-Minimum speed day

-Maximum speed day

-Temperature night

-Temperature hysteresis night

-Humidity night

-Humidity hysteresis night

-Minimum speed night

-Maximum speed night

-Negative pressure setting

-Switch sensor level

-Switch over time day/night

LCD display:

-Graphic and digital display of speed rpm constant

-Temperature display constant

-Humidity display constant

-Set point selectable not constant, over input keys

Sizes and technical data's:

Case: WxHxD = 130x80x70mm

Controller: WxHxD = 160x110x90mm

Designed for: 2x1'000W

Volts: 230V / 50HZ

Current: 10A

Digital sensor 5V Measures temperatures from –55°C to +125°C (–67°F to +257°F)

0.5°C accuracy from –10°C to +85°C

humidity accuracy ±4.5%rh

Protection class: IP54
